How to Read a Scale Drawing of a Patio and Measure It
Ada Hollis
8 Jun 2026
What that phrase usually means (and what you're expected to do)
The phrase 'a scale drawing of a patio is shown at right' is almost always a prompt in a math exercise, a home-planning worksheet, or a permit-related guide. It signals that a diagram is sitting next to the text and that you're expected to extract real measurements from it, not just look at it. The drawing won't be life-size. Instead, it uses a fixed ratio so that a small distance on paper represents a much larger distance on the ground.
In a classroom context, the question typically asks you to find the patio's actual length, width, perimeter, or area. In a homeowner planning context, it might ask you to verify setbacks, calculate paver quantities, or confirm that a proposed patio fits a certain space. Either way, the scale is the key piece of information. Without it, or without labeled dimensions, you can't convert the drawing into anything useful.
One important warning: if the drawing is labeled 'NTS' (not to scale), do not try to measure distances on the paper and apply a scale factor. NTS drawings are schematic only. In that case, rely entirely on the dimension callouts printed directly on the drawing, not on any physical measurement you take from the paper itself.
How to read a patio scale drawing
Before you do any math, take a minute to read the drawing properly. Most scale drawings share the same set of components, and missing any one of them leads to wrong answers.
Find the scale first

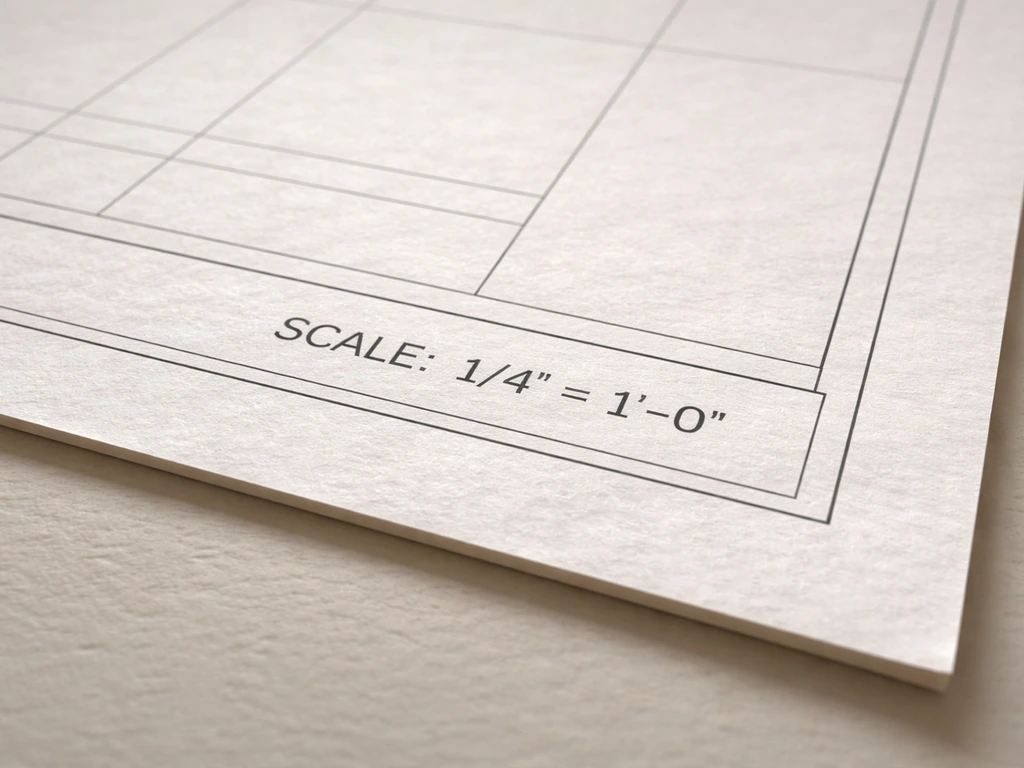

The scale is usually written in the title block (a box near the bottom or corner of the drawing) or directly below the diagram. Common residential formats in the U.S. are written like '1/4" = 1'-0"' or '1" = 10'.' Some drawings also include a graphic scale bar: a short ruler-like bar with labeled divisions you can compare against a physical ruler. If you see both, use the graphic scale bar for on-site printed copies, since printing at the wrong PDF size can throw off a written scale ratio.
Read the dimension lines and callouts
Dimension lines are the thin lines drawn between two points on a plan, with arrowheads or tick marks at each end showing where the measurement starts and stops. Extension lines are the lighter lines that reach from the object's edge out to the dimension line. The number printed above or along the dimension line is the labeled real-world measurement, usually in feet and inches. If those numbers are already printed, use them directly rather than trying to scale from the paper. If they're missing, that's when you measure the drawing yourself and apply the scale factor.

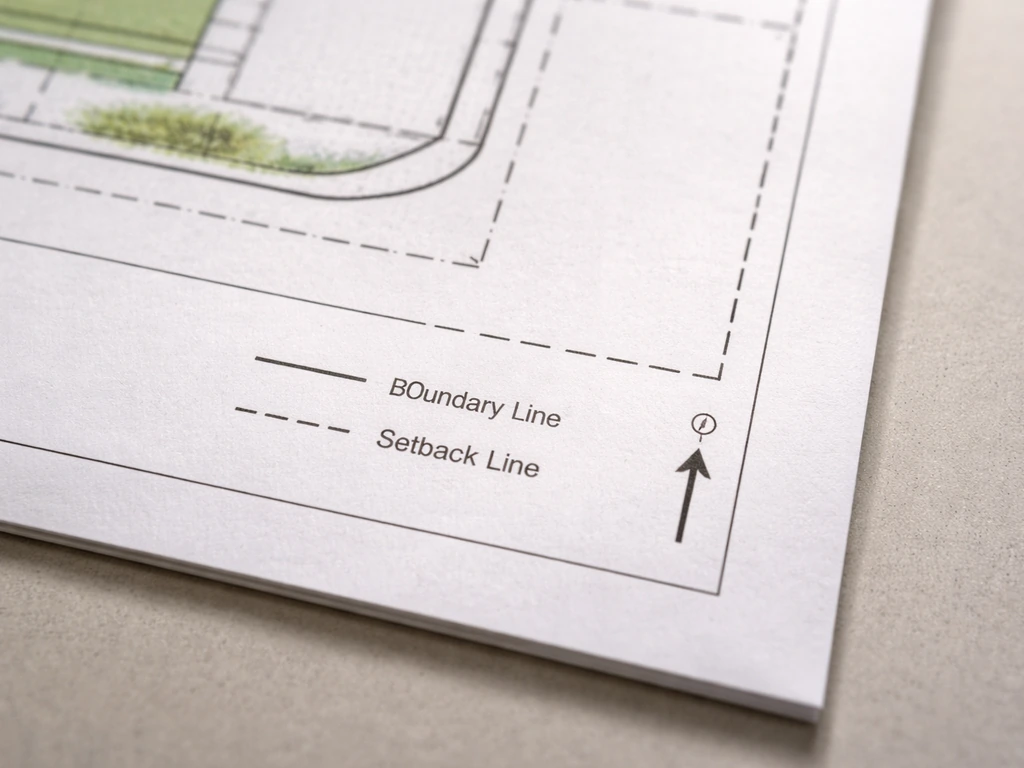

Check the legend and north arrow
blank" rel="noopener noreferrer">The legend explains what each line type and symbol means. Solid lines typically show the patio boundary or structure edges. Dashed lines often indicate setback lines, hidden elements below grade, or overhead features like a pergola. A north arrow tells you which direction the patio faces, which matters when you're verifying the drawing against an actual site. Before interpreting any boundary line, confirm its meaning in the legend, since a dashed line on one drawing might mean a setback while on another it marks a proposed edge. Check the blank" rel="noopener noreferrer">legend, because it defines what the different symbol styles, like dashed versus solid lines and setback or property line markings, mean so you interpret them consistently.
Translating the drawing into real measurements
Once you know the scale, converting drawing measurements to real-world dimensions is straightforward multiplication. Here's the step-by-step process.
- Identify the scale ratio from the title block or legend (for example, 1/4" = 1'-0").
- Use a ruler to measure the distance on the drawing in inches (or the drawing's stated unit).
- Divide your measured length by the left side of the ratio, then multiply by the right side. For a 1/4" = 1' scale: if you measure 2" on paper, that equals 2 ÷ 0.25 = 8 feet in reality.
- Alternatively, think of it as a multiplier: at 1/4" = 1', each inch on paper equals 4 feet, so multiply your paper measurement in inches by 4 to get feet.
- Double-check units. Make sure you're consistent: if the scale uses inches and feet, don't accidentally mix in metric.
- Calculate area by multiplying real length by real width (in feet), giving you square footage. This is useful for estimating paver quantities or comparing against common patio size benchmarks.
To verify the result on-site, use a tape measure or a laser distance measure. A laser measure is especially useful for larger patios: switch it on, aim at the far edge, and read the distance directly. If you're checking diagonal measurements to confirm a rectangle is square, measure corner to corner both ways: equal diagonals confirm right angles. Compare your on-site measurements against the scaled drawing result. A small discrepancy (an inch or two) is normal. A large one usually means the scale on the drawing was changed during printing, or the wrong scale was applied.
Common patio layout elements you'll see on drawings
Scale drawings of patios aren't just rectangles with a few numbers. They typically show several functional zones and connection points, and misreading any of them can throw off your understanding of the space.
- Seating or dining area: Often the largest rectangle or polygon on the drawing, representing where furniture sits. Dimension callouts here typically show clear usable floor space, not including any planters or border trim.
- Walkways: Narrower rectangular strips connecting the patio to the house, gate, or garden. Standard walkway widths run 36 to 48 inches for comfortable single-file passage, so if your scaled measurement comes out much smaller or larger, double-check the scale.
- Doors and gates: Shown as a thin arc on architectural drawings, representing the door swing. The arc's radius tells you how much clearance to leave. A standard exterior door needs about 3 feet of swing clearance.
- Edges, borders, and steps: Bold or double lines along the patio perimeter often indicate a raised edge, a poured concrete curb, or a step-down to the lawn. Steps are sometimes shown as parallel lines with a small arrow and 'DN' (down) notation.
- Setback lines: Dashed lines running parallel to the property boundary, indicating how close you can legally build. The dimension between the property line and the setback line is a critical number to read correctly before placing any permanent patio structure.
Patio, porch, balcony, verandah, or courtyard: telling them apart on the drawing
One of the most common points of confusion when reading an outdoor space drawing is identifying what you're actually looking at. Each of these spaces has a distinct definition, and that matters both for interpreting the drawing correctly and for understanding what's permitted or included in a property listing. Knowing who does patios in your area can also help you compare the plans and measurements against real-world patio builds. If you are trying to classify a space on a site plan, it helps to know the different types of patios and how they are typically labeled.
| Outdoor Space | Key Characteristics | How It Typically Appears on a Drawing |
|---|---|---|
| Patio | Ground-level, hard-surfaced outdoor area, no roof required, usually attached to or near the house | Filled or hatched rectangle at grade level, often shown abutting the rear or side of the house footprint |
| Porch | Roofed structure projecting from the building entrance, open at the sides, same level as the main floor or slightly raised | Shown as part of the building footprint with a roof overhang line; often labeled 'porch' or 'covered entry' |
| Balcony | Elevated platform projecting from an upper floor, enclosed by a railing, not at ground level | Shown as a projecting rectangle above the ground floor plan, often with a railing symbol along the open edge |
| Verandah | Roofed open gallery running along one or more sides of the house, usually at ground or first-floor level | Similar to a porch but wrapping more of the building perimeter; typically labeled and shown with a roof line |
| Courtyard | Enclosed or semi-enclosed outdoor area surrounded by walls or building wings, can be interior or exterior | Shown as an open space fully or partially enclosed by the building footprint or boundary walls; may have no dimensions if it's purely open hardscape |
On a plan, the quickest way to confirm you're looking at a patio rather than one of these alternatives is to check: Is it at grade (ground level)? Is there no roof line drawn over it? Is it a hard surface rather than a structural platform with framing? If yes to all three, it's a patio. A deck, by contrast, would show framing members, posts, and ledger attachment to the house wall, and it's typically elevated. If you are still visualizing what a labeled patio plan might look like, review examples of patios to compare shapes, zones, and scale drawing conventions. Getting this right matters because patios and decks may have different setback requirements and permit rules, and mixing them up in a worksheet or planning exercise changes every downstream calculation.
This distinction also connects to the broader question of patio size and shape. Once you know what the frame and finish are, you can better understand what patios are typically made of and why that choice affects durability what patios are made of. A ground-level slab patio can stretch much further from the house than a porch can, and it may be freestanding rather than attached. If you're working through problems involving rectangular patio shapes and fencing, or trying to understand standard patio dimensions, knowing exactly which outdoor space you're measuring matters from the first step. Rectangular patios are often fenced to define boundaries and provide a clear perimeter. If you are trying to compare your plan to a typical layout, this guide on what is a standard patio size can help you gauge reasonable ranges standard patio dimensions. Common patio sizes are often discussed in terms of typical lengths and widths homeowners plan for when laying out and sizing a slab standard patio dimensions.
What to do when the drawing is missing details or seems off
A surprising number of scale drawings circulate without a clear scale, with missing dimension callouts, or with boundaries that are hard to identify. Here's how to handle the most common problems without getting stuck.
No scale is shown
If there's no written scale and no graphic scale bar, do not guess. Instead, look for any labeled dimension on the drawing (even one side of the patio) and use that as your anchor. Measure that labeled dimension on the paper, then divide the real dimension by your paper measurement to calculate the scale ratio. Apply that ratio to all other unlabeled distances. If there are no labeled dimensions at all, the drawing is unverified and you should request the original document or ask whoever provided it for the scale information before proceeding.
The printed copy may have the wrong scale
If a drawing was printed from a PDF without 'actual size' selected, the scale printed on the sheet no longer matches reality. The fastest check: find a dimension line on the drawing, measure it with a ruler, and calculate what the scale would need to be for that to match the labeled number. If it doesn't match the written scale, note the actual ratio you calculated and use that instead. Alternatively, reprint the document at 100% scale (no 'fit to page') to restore the original ratio.
Boundaries and space types are unclear
If you can't tell where the patio ends and a walkway, lawn, or adjacent structure begins, look for the legend first. If there's no legend, use line weight as a guide: heavier or bolder lines usually mark structural or permanent edges, while lighter lines mark informational boundaries like setbacks or proposed changes. When the boundary still isn't clear, the best move is to find the original permitted drawing set from the local building department, which will include a proper legend and a verified scale. For a homework or worksheet scenario, re-read the problem text: it usually names the specific boundary or dimension you're meant to work with, even if the drawing itself is ambiguous.
You need to redraw or create a cleaner version
If the drawing you have is too unclear to work from, redraw it yourself from the labeled dimensions. Start with the overall length and width, draw them to a chosen scale (1/4" = 1' works well for most residential patios), add internal features like walkways and seating zones, and label every dimension you know. Even a hand-drawn version at a consistent scale is far more useful than working from a muddled original. If you're planning an actual patio project rather than solving a worksheet problem, take physical measurements on-site first, then sketch the drawing from those real numbers. That on-site sketch, drawn to scale, becomes your reliable source of truth.
The bottom line: a scale drawing of a patio is a tool, not a mystery. Find the scale, measure carefully, do the multiplication, and then verify on the ground. When something doesn't add up, trace it back to the scale ratio before assuming the patio itself was built wrong or the problem is broken. Nine times out of ten, the discrepancy is a printing issue, a unit mismatch, or a misread line, and all of those are fixable with a few minutes of systematic checking.
FAQ
How do I avoid errors if the PDF printout is not at actual size?
Use the sheet’s printed scale bar to compare against a ruler, because it can reflect the document’s actual reproduction size. If you only rely on the written ratio but your print settings used “fit to page” or changed page scaling, every measured length can come out wrong even though the ratio appears correct.
What if I only have a screenshot or scanned image of the scale drawing?
Convert the scan or photo into a properly scaled image before measuring. Measure a known labeled dimension on the image, compute the implied scale ratio, then apply that same ratio to the other distances, rather than trusting the stated scale alone.
Do I still need to measure with a ruler when dimensions are printed on the drawing?
If a dimension line is already labeled with a real-world number, that value is your measurement, no conversion needed. Only measure with a ruler when a dimension callout is missing, obscured, or the problem asks you to “find” a length that is not printed on the plan.
How should I handle a patio that looks like a rectangle but might not be square?
Diagonals are commonly used to verify squareness. Measure both corner-to-corner diagonals on-site and compare them, if they match (within a small tolerance), the rectangle assumption is consistent. If the diagonals differ a lot, treat the patio as irregular and compute area using the actual shape or the plan’s zone dimensions.
When calculating patio area for materials, which parts should be included or excluded on the plan?
For paver or turf calculations, distinguish between the patio boundary and any excluded zones shown as dashed or not part of the hardscape. Sum areas per zone based on what the legend says is included, then apply a waste factor (commonly 5% to 15%) if you are covering with materials like pavers.
What unit conversions should I watch for on scale drawings that mix inches, feet, or decimals?
If the drawing labels dimensions in feet and inches, keep them in those units when applying the scale factor. If the drawing uses decimal feet, convert consistently so your multiplication uses the same unit system, then convert at the end for your final answer.
How do I measure and compute dimensions when the patio boundary is curved?
If the patio edges are curved, measure straight to the nearest described boundary points only if the drawing provides a radius or arc dimension. Otherwise, measure chord distances carefully and use the provided radius/arc callouts, since treating a curve like straight edges usually underestimates surface area.
If the problem asks for perimeter or boundary length, which edges should I count?
Start by identifying the exact boundary the question asks about, then compute that specific dimension from the drawing. For perimeter tasks, include only the exterior edge segments that the legend defines as part of the patio, not setbacks or annotation lines.
What if the patio plan includes setback lines, do I measure those as part of the patio?
A “setback” line may show allowed placement relative to property lines and is not necessarily the actual patio edge. Confirm what the legend says each line type represents, then measure setbacks only if the question explicitly asks about clearance requirements.
What should I do if the drawing is marked NTS but still seems to have usable-looking lines?
If the drawing is explicitly labeled NTS, you should not measure. Instead, rely on any labeled dimensions printed on the plan. If dimensions are missing too, you may need the original permitted set or a clarified drawing because there is no trustworthy way to infer real sizes from an NTS schematic.
